BV Liquid Tank Container 20GP 20 Ft Iso Tank Container 20000 Liters

Product Categories
Henan Lishixin Logistics Equipment Co., Ltd.
Contact Now

BV Liquid Tank Container 20GP 20 Ft Iso Tank Container 20000 Liters

Brand Name : LSXC

Model Number : LSX

Certification : CCS,LR,BV,ISO

Place of Origin : China

MOQ : 1 Unit

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20 unit per month

Delivery Time : 30 working days

Packaging Details : Without packaging or according to customer requirements

External Dimensions(l x W x H)(mm) : 6058*2438*2591/mm

Internal Dimensions(l x W x H)(mm) : 5898*2352*2393/mm

Test Pressure : 6Bar

Nominal thickness of shell : 5mm

Nominal thickness of head : 6mm

Warranty : 1 Year

Frame material : Q235B

Design temperature range : -40℃~ +130 ℃

Contact Now

20 feet ISO Liquid Tank Container 20GP ISO carbon steel tank 20000 liters

Product description:


1. 20000liters 20GP ISO Tank


2. Carbon steel or Aluminum alloy 5182


3. Thickness:tanker:4mm,head :5mm


4. we can do it according to your orders



Product parameters:

Tank Type 20’ ISO full frame collar tank
Frame Dimensions 20’ x 8’ x 8’6”
Capacity

21,000 Litres (+ /- 1%)

24,000 Litres (+ /- 1%)

25,000 Litres (+ /- 1%)

26,000 Litres (+0 /- 1%)
M.G.W. 36,000 kg
Tare (est.) 3,250 kg +/- 3%
Max Payload 32,750 kg
Working Pressure 4 Bar
Test Pressure 6 Bar
Design Temp -40℃ to +130℃
Vessel Material

SANS 50028-7 WNr 1.4402/14404 (C<0.03%), equivalent to 316L

Shell: Cold Rolled 2B finish

Ends: Hot rolled or Cold Rolled, polished internally to 1.2 Micron CLA

Shell Thickness 4.4 nominal
Ends Thickness(B.F)

4.5 mm nominal

4.6 mm nominal
Corrosion Allowance 0.2mm
Frame to Shell 316 stainless steel
Corner castings ISO 1161 - 8 off
Vessel Design Code ASME VIII Div 1 where applicable
Radiography

Shell

Ends

ASME Spot

ASME Full
Inspection Agency LR or BV
Cargo carried See dangerous cargo lists for UN Portable T11 tank
Stacking Each container approved for 10 high stacking
Design Approvals IMDG T11, CFR 49, ADR/RID, CSC, TC, TIR, ISO, UIC, US DOT

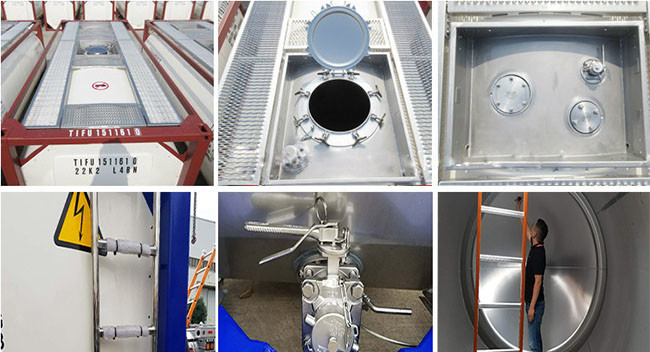

Product details:

BV Liquid Tank Container 20GP 20 Ft Iso Tank Container 20000 Liters

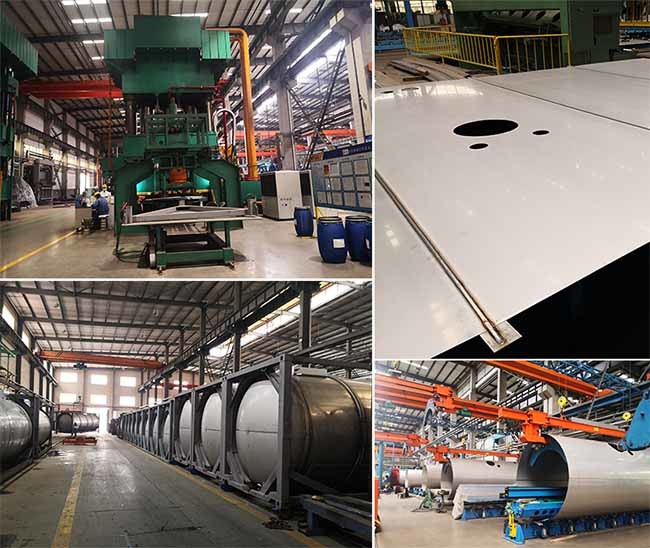

Workshop details:


The following are the producing procedures of iso tank container in factory workshop.
BV Liquid Tank Container 20GP 20 Ft Iso Tank Container 20000 Liters




Quality Control:


1. We are a professional semi trailer supplier with advanced equipment and high efficiency. The delivery date can meet the requirements of customers.



2. Our semi trailer production technology has a number of patents, and our production technology ranks among the best in China. We pay attention to every detail of semi trailer, we pursue to make the customer have a good experience.

3.If you have any needs, you can contact us in time.





FAQ:


Q: What kind of Payment can you accept?
A: T / T and L/C is all right to us.


Q: Does your iso tank container meet with international requirement?
A: All of our tank container will be approval by BV or LR or CCS and meet with International Standard.


Q: How long will it takes to ship?
A: Around 15-25 working days.



Q: What kind of Payment can you accept?

A: T / T and L/C is all right to us.



Q: Does your iso tank container meet with international requirement?

A: All of our tank container will be approval by BV or LR or CCS and meet with International Standard.



Q: How long will it takes to ship?

A: Around 15-25 working days.



Q: How about the Color , Specific configuration things?

A: It's up to you , most of them are optional and can be changed by your needs.
